Shanyi Shida practical 7-inch high-definition LCD night vision waterproof adjustable angle video doorbell

Title:HD 7″ TFT color Video Door Phone Intercom Doorbell Home Security Camera Monitor Night Vision system

Keywords:Video door phone,inrecom unlock,Wired intercom equipment

Features: with surveillance, intercom, unlock, hands-free, ringtones choice, ringback function

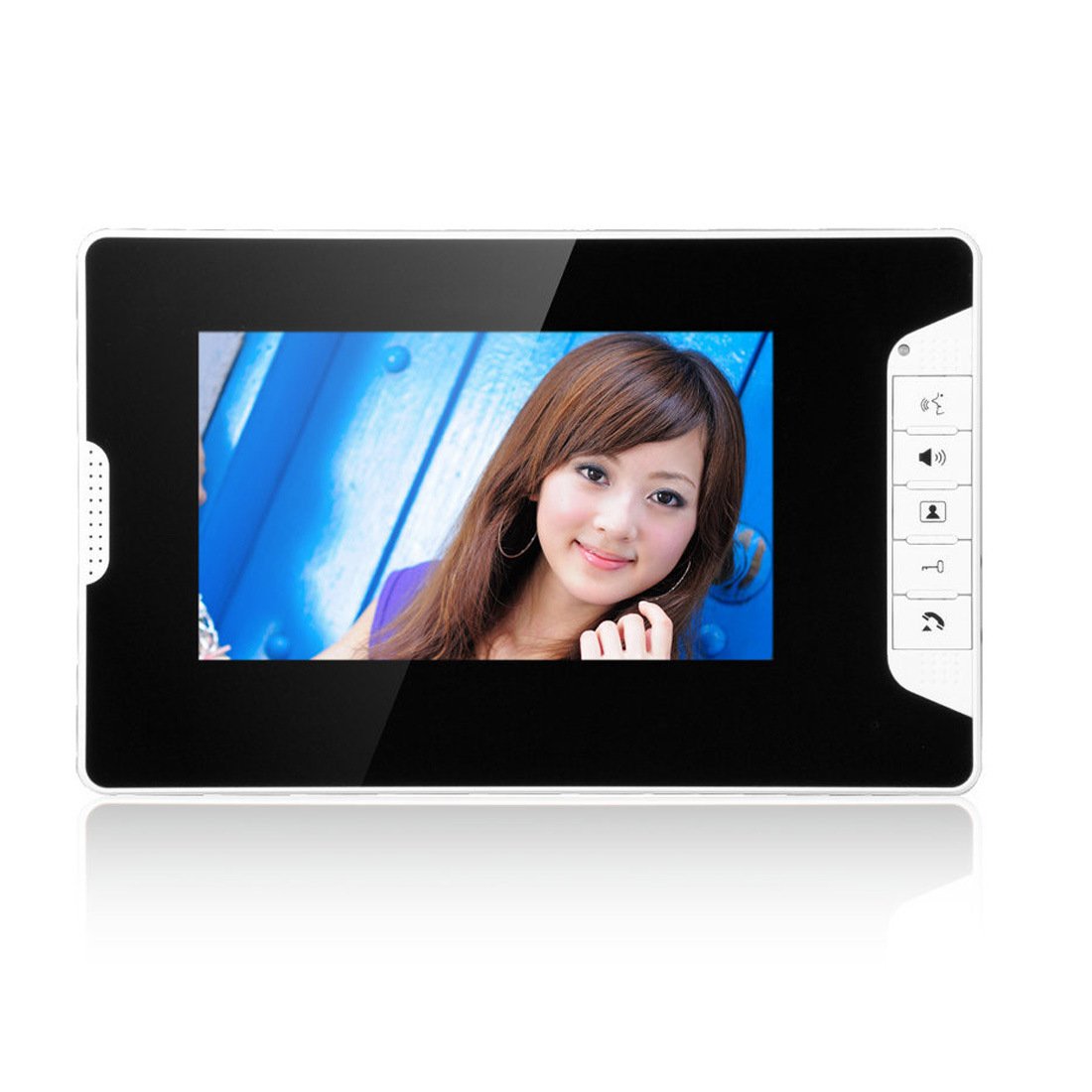

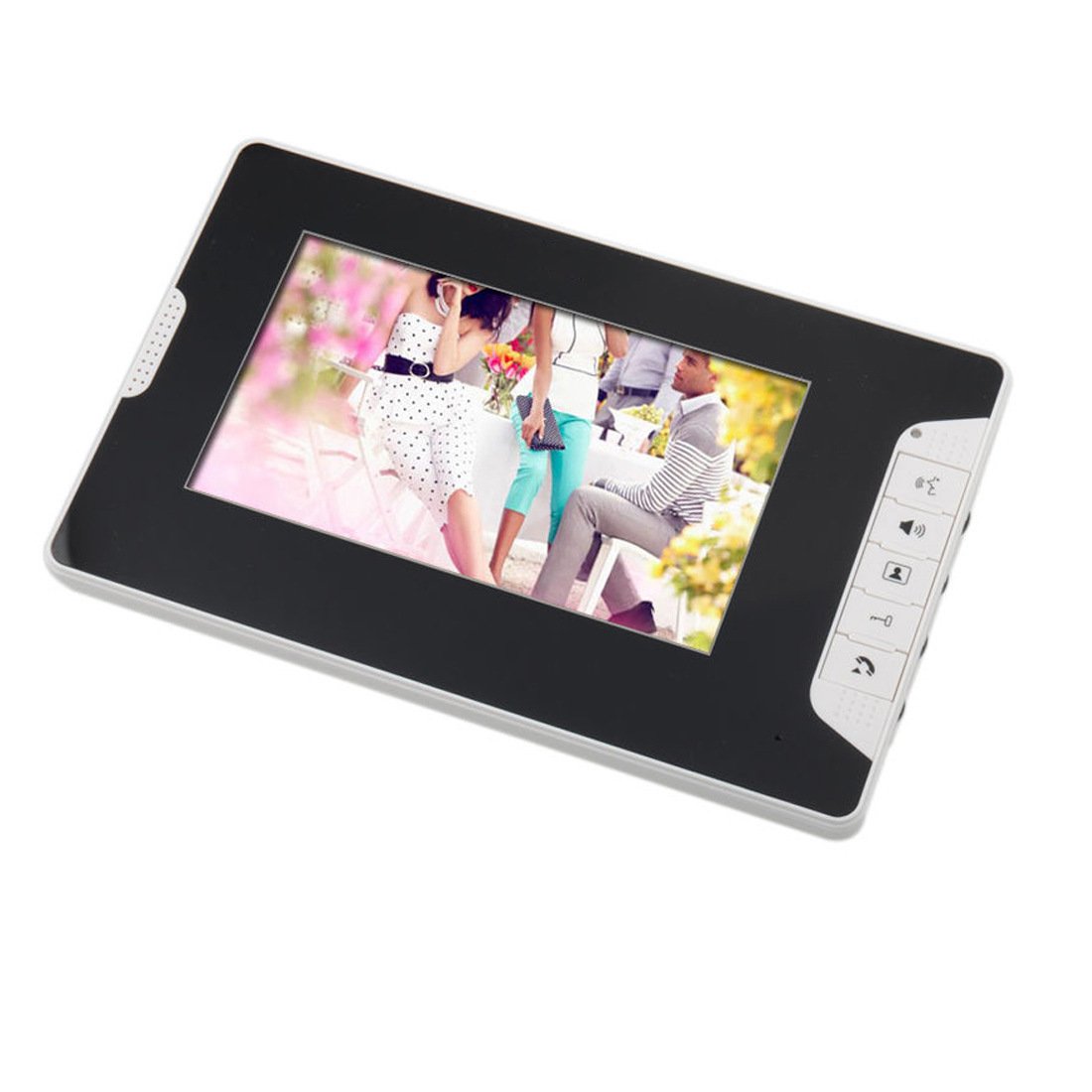

The indoor unit

1,7 inch high-definition digital screen, no radiation, low power, high definition widescreen image

2, hands-free intercom function

3, electronic control lock function

4, monitoring outdoor functions

5, image brightness, color, ring volume, speaker volume can be adjusted

6,16 polyphonic sound optional, will not always hear the monotone of the doorbell

7, interior wall design

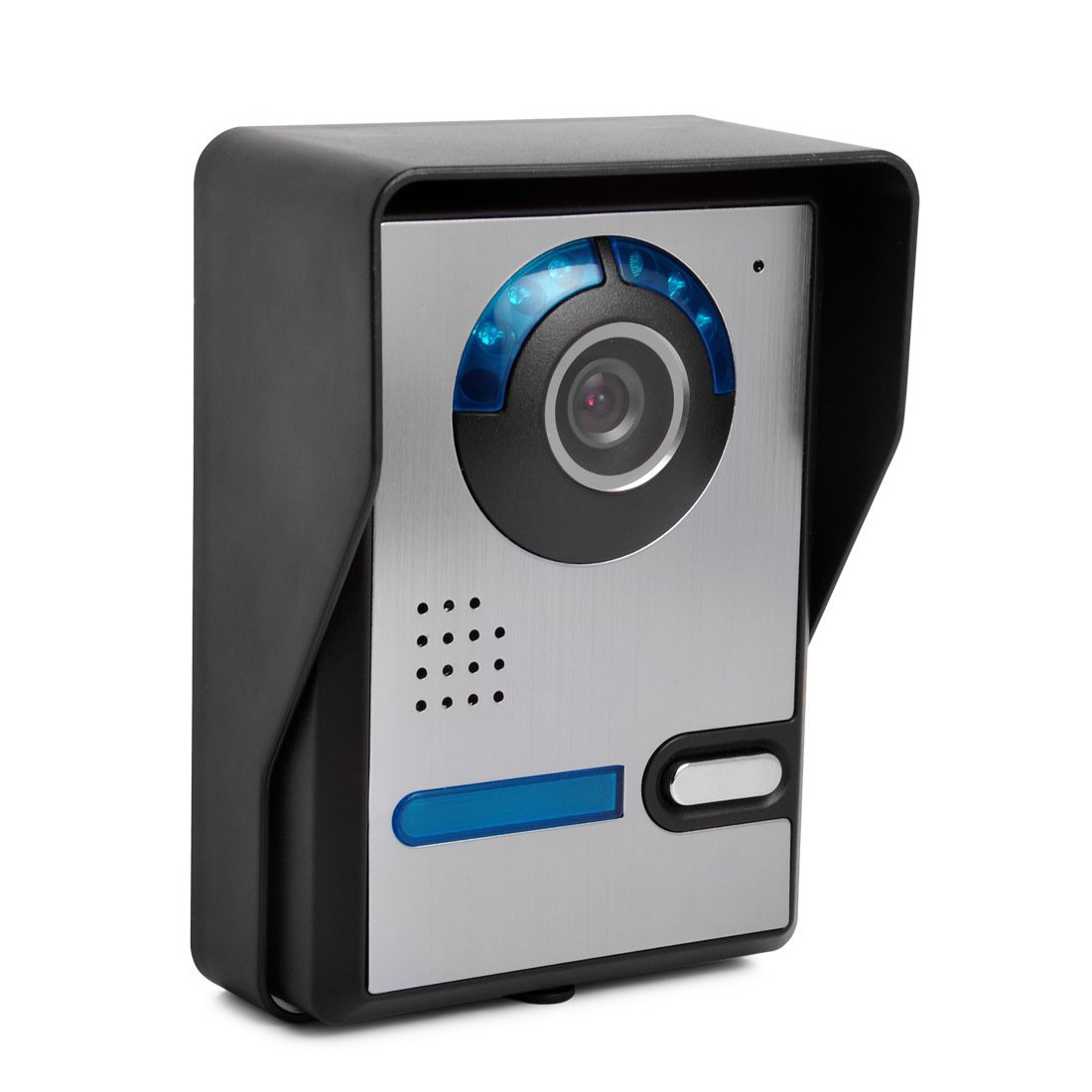

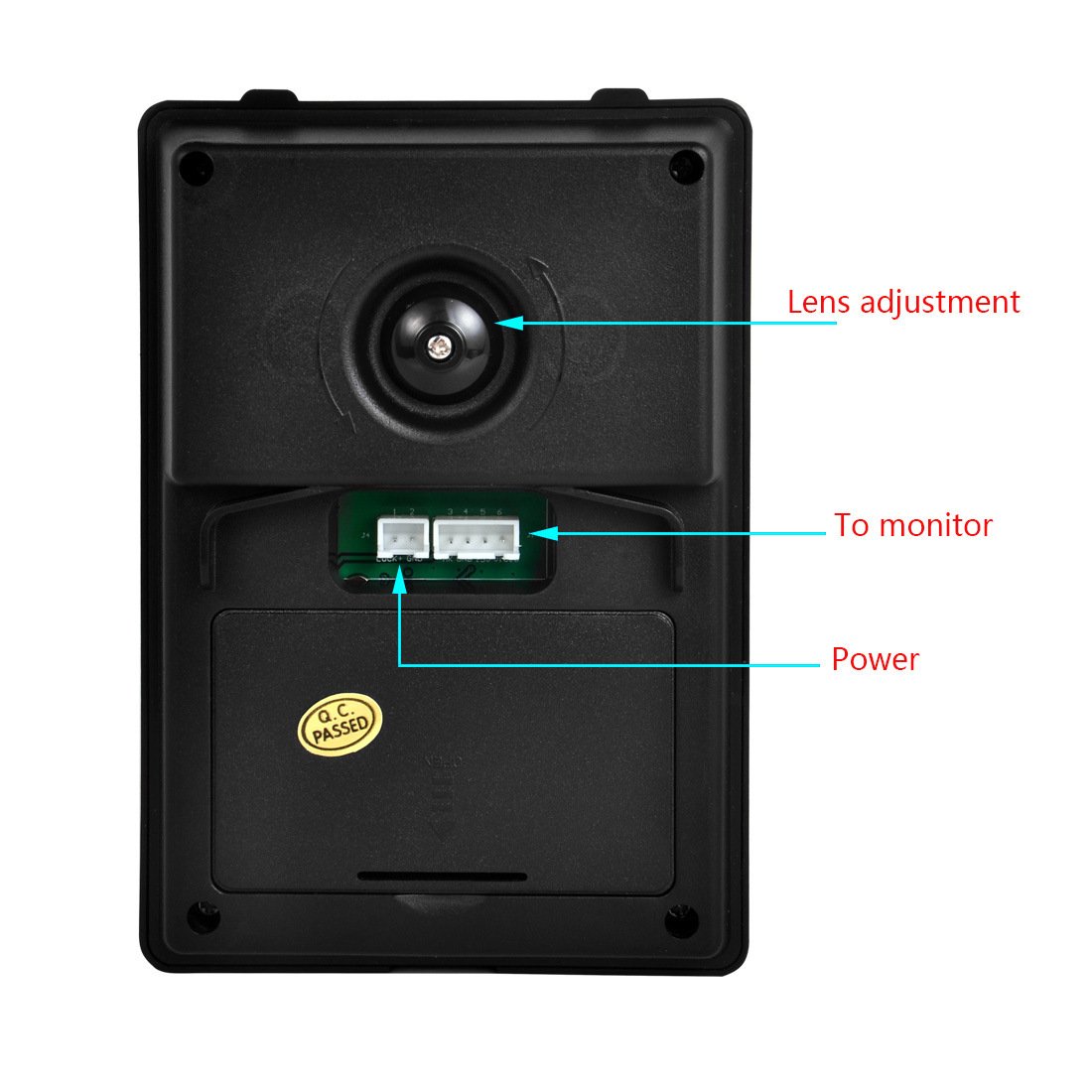

Outdoor unit

Camera: 1/4″HD color CMOS can reach 700 line

Camera lens: 3.6mm

Camera viewing angle: 92 degrees (adjustable)

Call duration time: 120 Seconds

Monitor duration time: 60 Seconds

Power consumption: Static state <0.5W, calling <10W

Power input: AC 100V-240V 50/60 Hz

Power output: DC15V

Indoor monitor: 250*150*24mm

Outdoor camera:138*98*40mm

Package includes

1 * Outdoor camera

1 * Indoor monitor

1 * AC adapter

1 * 5m 4-core Connection cable

1 * 2-core Connection cable

1 * Package of screws

1 * User manual-English

Moniteur

Écran: 7 “TFT/LCD Source d’alimentation: AC100V-240V / 50-60Hz Pixels effectifs: 480*234*30 Puissance: ≤ 14W (fonctionnement), ≤ 2W (veille) Câblage: 4 fils Dimensions: 24*15*23cm Taille de paquet: 28*18*10cm

Diagramme de fil

La serrure de porte et l’alimentation du contrôle d’accès ne comprennent pas
